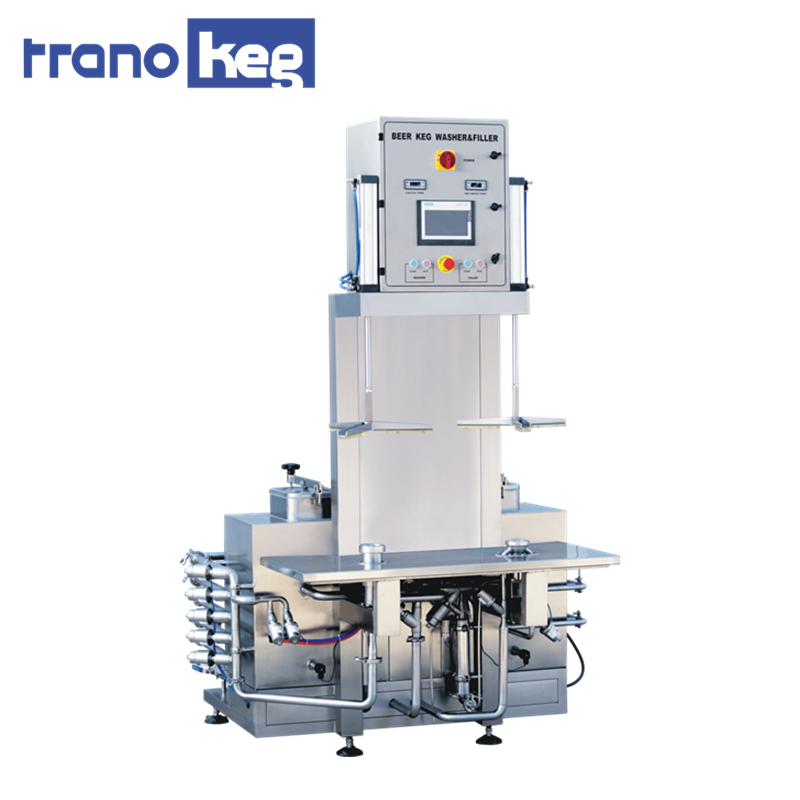

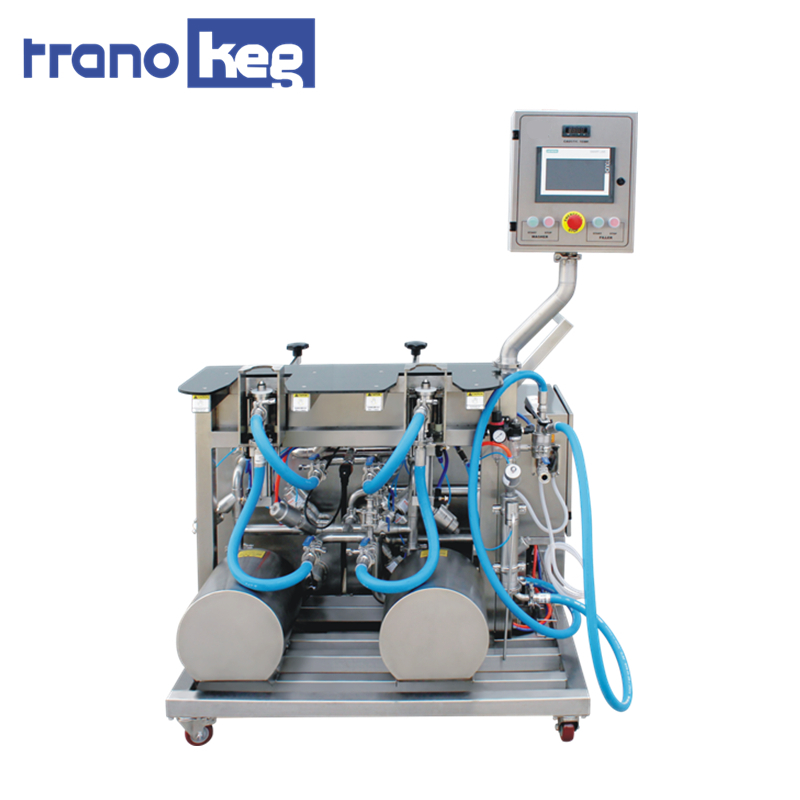

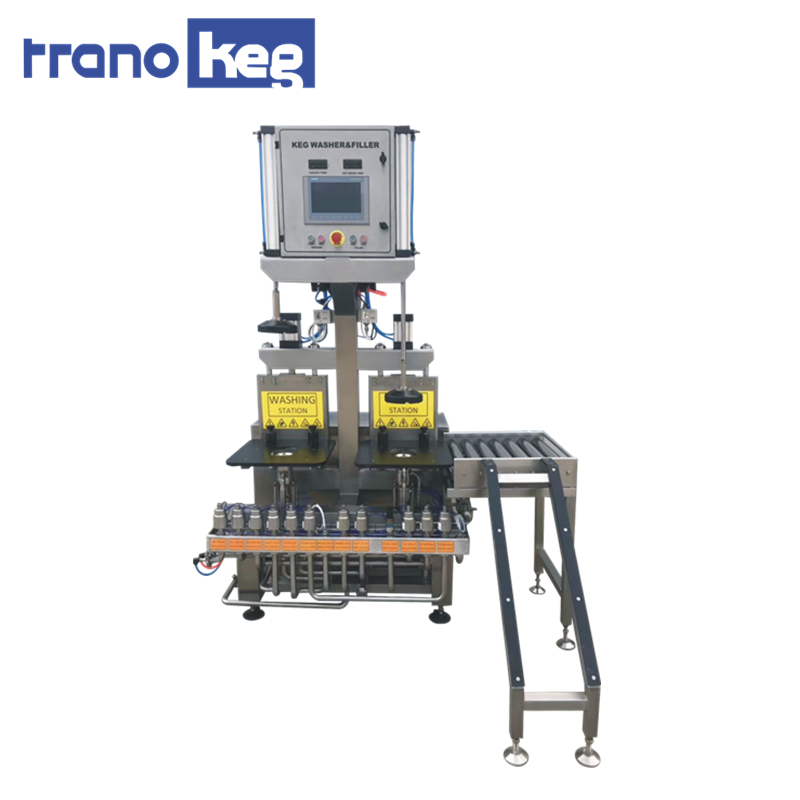

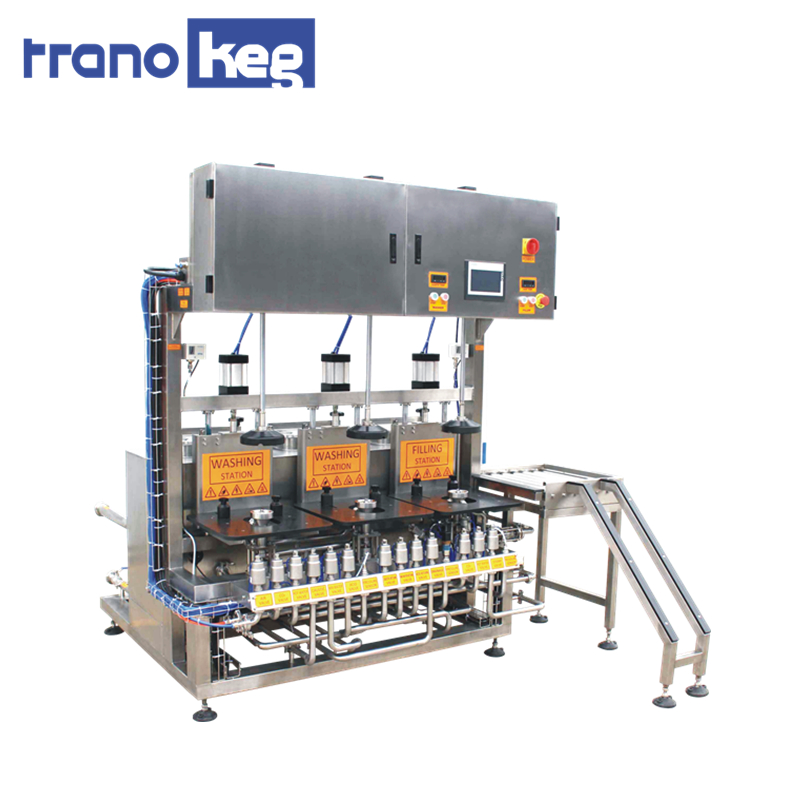

Automatic Beer Keg Combine Washer And Filler, Washing And Filling Machine

Main Structures and Characteristics

1) SIEMENS S7-200 control unit is adopted for automatic control of all processes. Washing, disinfecting and CO2 pressure preparation will be automatically finished.

2) lye water, disinfecting water can be recycled to save water.

3) Adopt pneumatic angle vale combination to ensure a safe work.

4) Frame, working station, pipeline and valves are all by stainless steel, all pipelines and pneumatic system are all closed cycle. Good look and stable.

5) Time parameters can be adjusted according to customers' demands. If a procedure is not needed, you can turn the time parameter of this procedure to "0".

The washer working procedure

Pressing → drain off → water washing → air blowing/drain off → hot soda-water washing → air blowing/to soda-water box → hot water washing →air blowing/drain off → hot water washing → drain off → steam sterilized (air blowing/drain off) →co2 blowing/drain off→ sterilized water washing →co2 blowing/to water tank→ co2 pressure preparing

The filler working procedure

Load the keg → Pressing → co2 pressure preparing → CO2 blowing spear → open the spear → filling → stop → unload the keg

CIP procedures at filling position:

Install washing accessory → start → spear cylinder open → time's up → stop

1. Q:What is the guarantee time ? if machines broken or lost during sea freight who will take responsible ?

    A:Guarantee time is for one year from Machine arrive customer sea port. for every export machine we buy insurance for it . if machine lost or broken during sea freight . we take responsible for it .

2. Q: During Guarantee time , if machine broken by machine design ,what should we do?

    A:during guarantee time , if machine broken by machine design fault , we talk all responsible , for machine broken part free charge send to you , if after change broken part machine can not work , we would send new machine to you for exchange.

3. Q: Which kind documents your company can provided?

    A:after ship depart from China port ,we can get documents from Shipping company such as : bill or lading , insurance documents.packing list , commercial invoice . if you need , we also can apply CO ,FORM F, FORM E etc.

4. Q:After guarantee time , if we need spare parts , can you provided it ?

    A:we can provided for the machine spare part .

5. Q:Which kind of package you will use ?

    A:For export , we usually use plywood box . which meet export standard.
