Aluminum beverage cans are used for packing beer, soft drinks, craft beer, coffee, tea and new energy drinks etc...

Beer keg cleaning and Filling machine

Home  > Beer keg cleaning and Filling machine  >

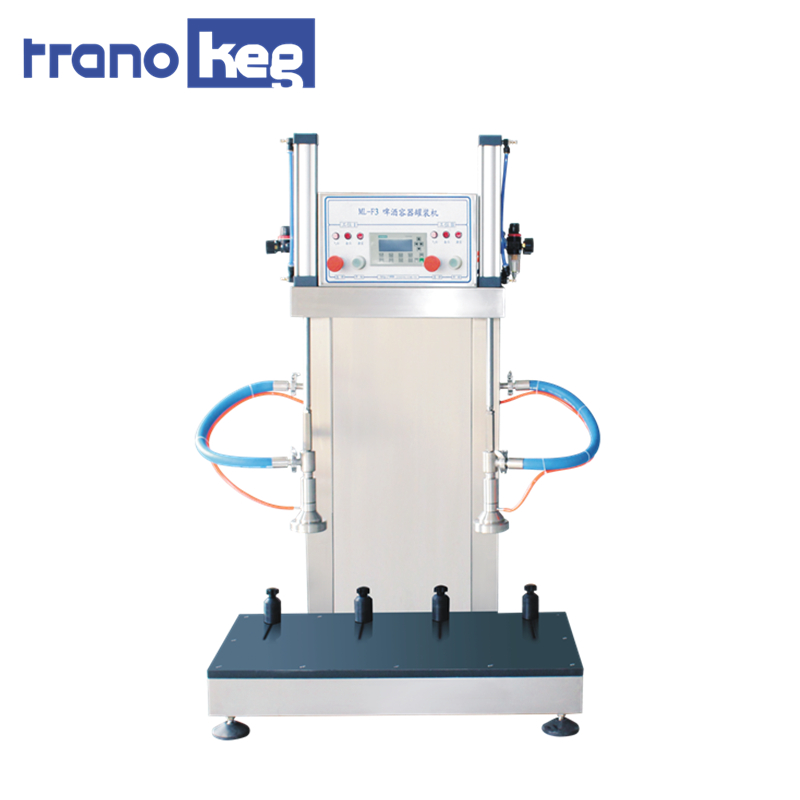

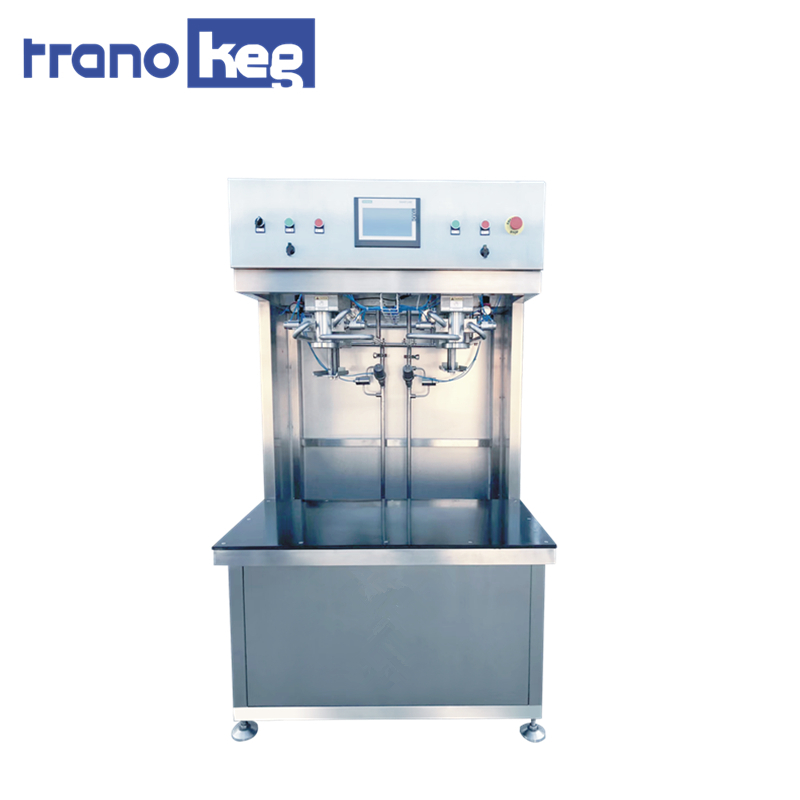

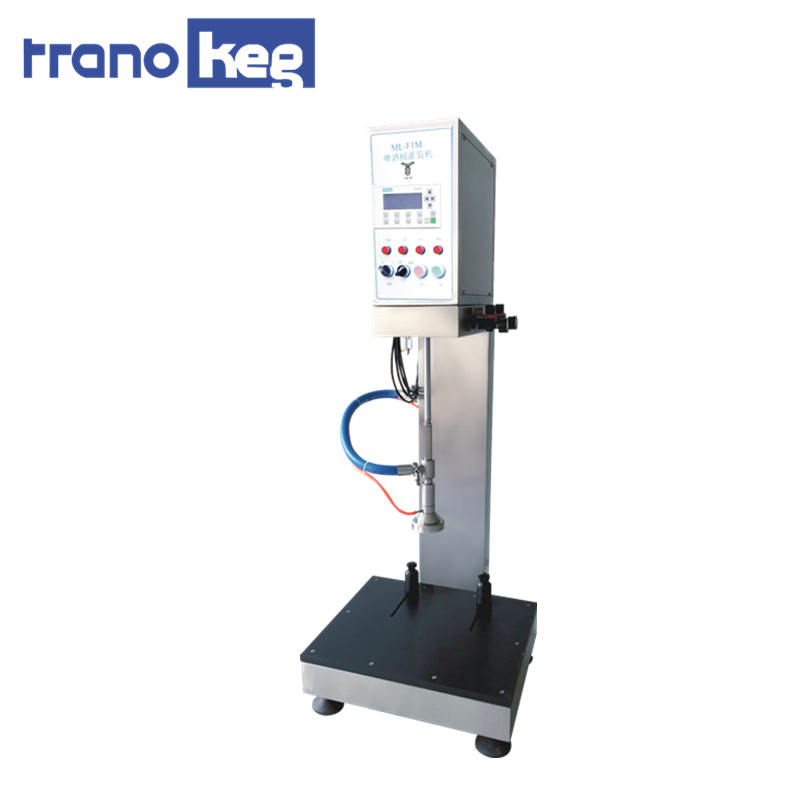

one station Semi Beer Keg Filling Machine Automatic Equipment beer keg Filling machine

这里可以自定义设置
product-Trano-img
product-Trano-img
product-Trano-img
product-Trano-img
one station Semi Beer Keg Filling Machine Automatic Equipment beer keg Filling machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Restaurant, Food & Beverage Shops
Application:
Beverage
Packaging Type:
Barrel
Packaging Material:
metal
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
DC24V
Place of Origin:
Shandong, China
Brand Name:
Trano
Dimension(L*W*H):
Customzied
Weight:
260KG
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
Product name:
Automatic Beer Keg Filling Machine
Productivity:
30- 60 kegs/H
Cylinder Pressure:
0.20-0.30MPa
CO2 Pressure:
0.2~0.25 MPa
Filling Capacity:
1~5 L
Liquor line pressure:
0.18~0.22 MPa
Pressure Index:
0.1~0.15Mpa
Specific air consumption:
0.2 cubic meter/H
CO2 consumption:
2 cubic meter/H
Beer wastage:
<1%
Supply Ability
Supply Ability:
100 Set/Sets per Month beer filling machinery
Product Description
product-Trano-img
Item
Technical Parameters
Productivity
100-120 kegs/H
Cylinder Pressure
0.45~0.5 Mpa
CO2 Pressure
0.2~0.25 MPa
System Control Voltage
DC24V
Filling Capacity
1~5 L
Liquor line pressure
0.18~0.22 MPa
Pressure Index
0.1~0.15Mpa
Specific air consumption
0.2m³/H
CO2 consumption
2m³/H
Beer wastage
<1%
product-Trano-img
product-Trano-img
Mode
F1-N-N
50-70 kegs/H
600x650x1570
Fixed volume filling until full
60KGS
F2-N-N
90-120 kegs/H
960x650x1570
Fixed volume filling until full
105KGS
F1-T-M
50-70 kegs/H
600x650x1570
Quantitative Filling of German Brand Flowmeter
60KGS
F2-T-M
90-120 kegs/H
960x650x1570
Quantitative Filling of German Brand Flowmeter
105KGS

Main Features

1) Automatic control by PLC,could be adjustable when the machine is open.

2) Cleaning and filling could be finished in this machine at one-time.

3) Pipeline use steel edge which could ensure no-leaking and long life

4) Well- used for beer fresh bucket and draught beer bucket

5) Has CO2 preparation function

6) All use Pneumatic double acting Angle seat valve which could ensure the action sensitivity and reliability

7) Anoxic and rated pressure filling function

8) CIP automatic cleaning system

Certifications
product-Trano-img-1
Our Service
product-Trano-img-1
Packing & Delivery
product-Trano-img-1
Packaging
Size
1140 (L) * 1150 (W) * 1750 (D)
Weight
260KG



Packaging Details
The normal package is non-fumigated plywood(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

1. Q:What is the guarantee time ? if machines broken or lost during sea freight who will take responsible ?

    A:Guarantee time is for one year from Machine arrive customer sea port. for every export machine we buy insurance for it . if machine lost or broken during sea freight . we take responsible for it .

2. Q: During Guarantee time , if machine broken by machine design ,what should we do?

    A:during guarantee time , if machine broken by machine design fault , we talk all responsible , for machine broken part free charge send to you , if after change broken part machine can not work , we would send new machine to you for exchange.

3. Q: Which kind documents your company can provided?

    A:after ship depart from China port ,we can get documents from Shipping company such as : bill or lading , insurance documents.packing list , commercial invoice . if you need , we also can apply CO ,FORM F, FORM E etc.

4. Q:After guarantee time , if we need spare parts , can you provided it ?

    A:we can provided for the machine spare part .

5. Q:Which kind of package you will use ?

    A:For export , we usually use plywood box . which meet export standard.

If you have any question about our pasteurizer, please contact me no hesitate!

product-Trano-img-2
Our Company
product-Trano-img-2
Related Products
product-Trano-img-2
product-Trano-img-3
product-Trano-img-3

Products Name with link

100% Response Rate

Products Name with link

100% Response Rate

Products Name with link

100% Response Rate

Less time and effort are needed to maintain this product over the years, therefore one can save energy and costs. It meets international standards and passes the tests of SGS. This product will finally contribute to the improvement in production efficiency. Because it can effectively eliminate human error during operation. It meets international standards and passes the tests of SGS.
