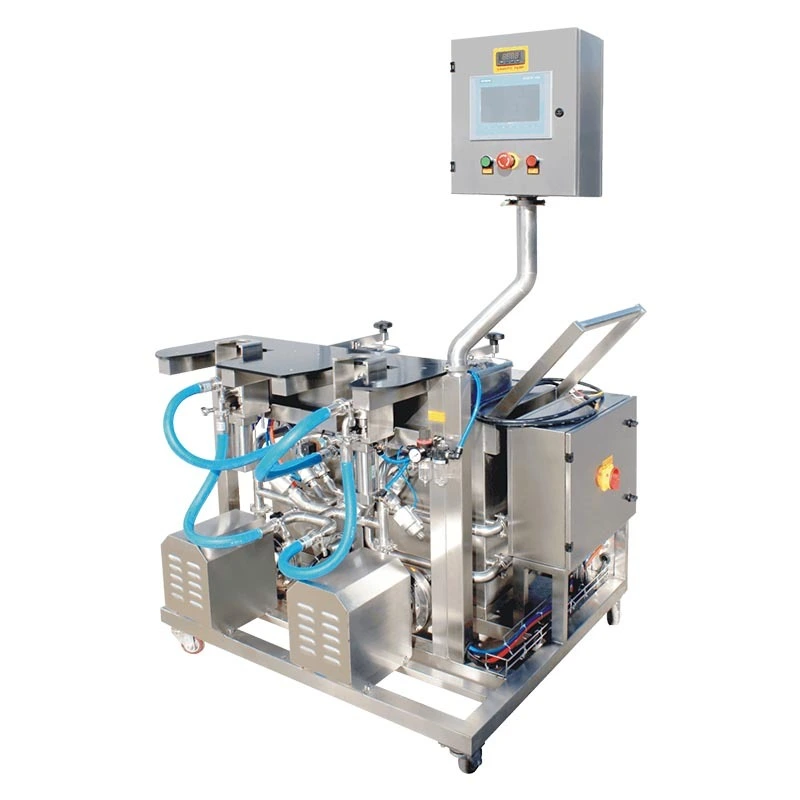

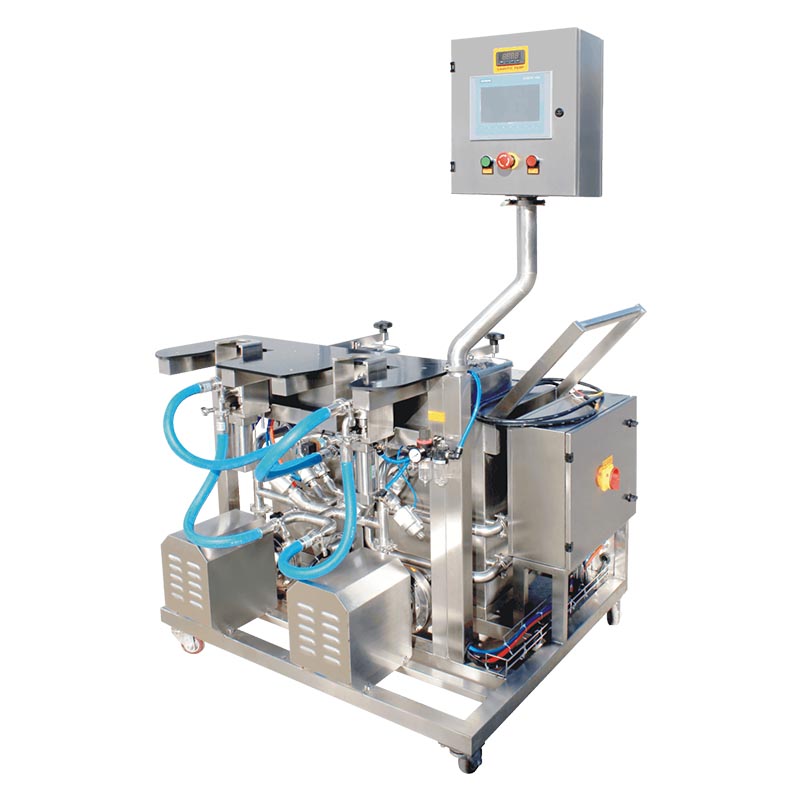

Beer Keg Washing And Filling Machine TRCFA2-22E-T-N-1-2N
5.0
Model:
TRCFA2-22E-T-N-1-2N
Guarantee:
1 Year
Min.Order:
One set
Payment Terms:
T/T, L/C, Cash, Western Union
Delivery time:
40 working days
Packaging Details:
Plywood case with iron pallet
Supply Ability:
500 Sets per Month
Port:
Qingdao
Applicable Industries:
Food & Beverage Factory, Food Shop, Food & Beverage Shops
Automatic Grade:
Automatic, Semi-automatic
Voltage:
Customized
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| TRCFA2-22E-T-N-1-2N | BEER KEG WASHING AND FILLING MACHINE | |||||||||
| Matching Parameter | Two pumps、two tanks without insulating layer，hot water need connect with the other source | |||||||||
| Tank Parameter | Two tanks,single tank 100L without insulating layer, one is caustic tank, the other one is rains water tank. | |||||||||
| Heater Way | Electrical heater incaustic tanks | Capacity | 40-50pcs/H（washer） 40-50pcs/H（Filler） | |||||||
| Tank Insulating Layer | No | The table can rise or not | no | |||||||
| Spear Type | A,S,D,M OR G ONE OF THEM | Filling Part With Flowmeter Or Not | No | |||||||
| Power | 380V 3phase 50Hz 8KW | According To Customers Power Standard | ||||||||
| Size（L*W*H） | 1.250*1.0*1.8M package: 1.35*1.10*1.5M | Package | Composite Borad Box | |||||||
| Equipment explaination | 1. It is use the Siemens S7-200 controller and Schneider air break swtich,,Taiwan AirTAC solenoid valve,pump is Chinese Yuehua, if have flowmeter, we choose German Burkert. 2. Separate pipe systems of keg washing part and filling part. The cleaning process adds unique hot caustic washing and steam sterilization function. It can use the washing parts to do CIP to filling part. Machine have dosing pump, sanitizer will clean the keg at last. 3. Use couplers to connect with keg, keep pressure in a keg, no beer lost.The machine will stop until full. 4. The whole machine use the stainless steel AISI304. Pipeline welding uses German automatic pipe welding equipment, one-time welding double-sided forming. Washing working procedure: Pressing→air blowing/drain off→rains water washing→air blowing/drain off→caustic washing→air blowing /to caustic tank→hot water1 washing→air blowing/drain off→hot water2 washing→air blowing/to rains water tank→acid →CO2/drain off→ co2 pressure preparing→cylinder return Filling working procedure: Pressing→open spear by hand→fill Co2→filling →close spear by hand | |||||||||
