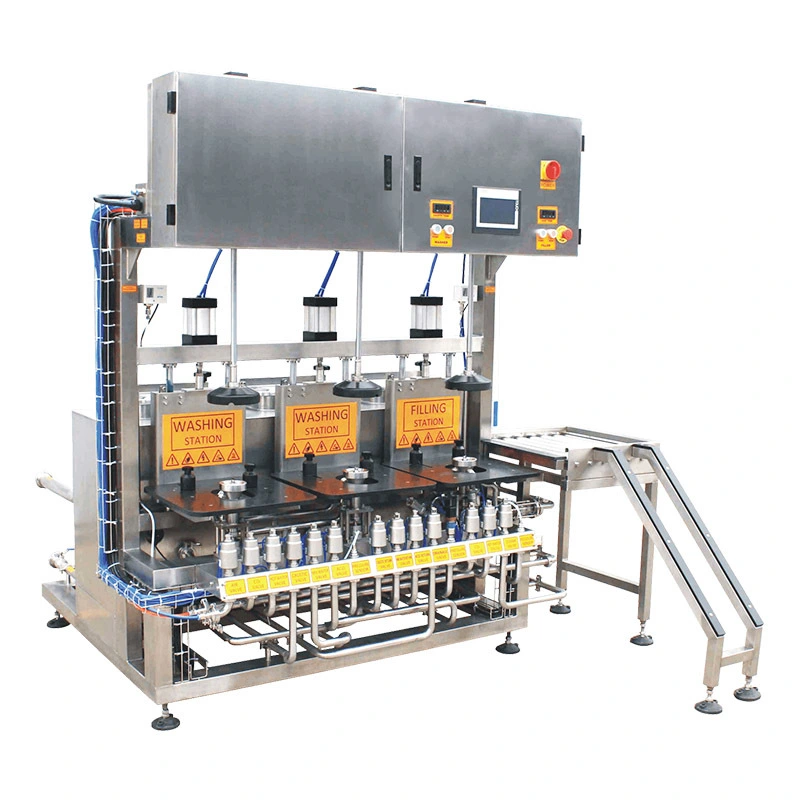

Beer Keg Washing And Filling Machine TRCFA3-33S-T-H-1-2M-L
5.0
Place of Origin:
Shandong, China
Model:
TRCFA3-33S-T-H-1-2M-L
Guarantee:
1 Year
Min.Order:
One set
Payment Terms:
T/T, L/C, Cash, Western Union
Delivery time:
40 working days
Packaging Details:
Plywood case with iron pallet
Supply Ability:
500 Sets per Month
Port:
Qingdao
Applicable Industries:
Food & Beverage Factory, Food Shop, Food & Beverage Shops
Automatic Grade:
Automatic, Semi-automatic
Voltage:
Customized
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| TRCFA3-33S-T-H-1-2M-L | BEER KEG WASHING AND FILLING MACHINE | |||||||||
| Matching Parameter | Three pumps. three tank without insulating layer | |||||||||
| Tank Parameter | Three tank,single tank 100L without insulating layer | |||||||||
| Heater Way | Steam heater in two tanks( caustic and hot water) | Capacity | 40-50pcs/H（washer） 40-50pcs/H（Filler） | |||||||
| Tank Insulating Layer | No | The table can rise or not | YES | |||||||
| Spear Type | A,S,D,M OR G ONE OF THEM | Filling Part With Flowmeter Or Not | YES | |||||||
| Power | 380V 3phase 50Hz 3.0KW | According To Customers Power Standard | ||||||||
| Size（L*W*H） | 2.25*2.20*2.10M
package: 1.75*2.25*2.29M | Package | Composite Borad Box | |||||||
| Equipment explaination | 1. It is use the Siemens S7-200 controller and Schneider buttons and knobs. 2. Separate pipe systems of keg washing part and filling part.The cleaning process adds unique hot caustic washing and steam sterilization function. In addition,add acid washing function. 3. Fill way is invert.The machine will stop until full. 4. You can clean all pipe with CIP system on filling part. 5. The whole machine use the stainless steel AISI304. Pipeline welding uses German automatic pipe welding equipment, one-time welding double-sided forming. Washing working procedure: Pressing→air blowing/drain off→water washing→air blowing/drain off→hot caustic washing→air blowing/to caustic box→hot water1 washing→air blowing/drain off→hot water2 washing→steam blowing/drain off →co2 blowing/drain off→co2 pressure preparing→cylinder return Filling working procedure: Pressing→steam sterilize keg spear→CO2/drain off →open the spear→co2 pressure preparing→filling→close the spear→hot water washing spear surface→steam/drain off→cylinder return | |||||||||
