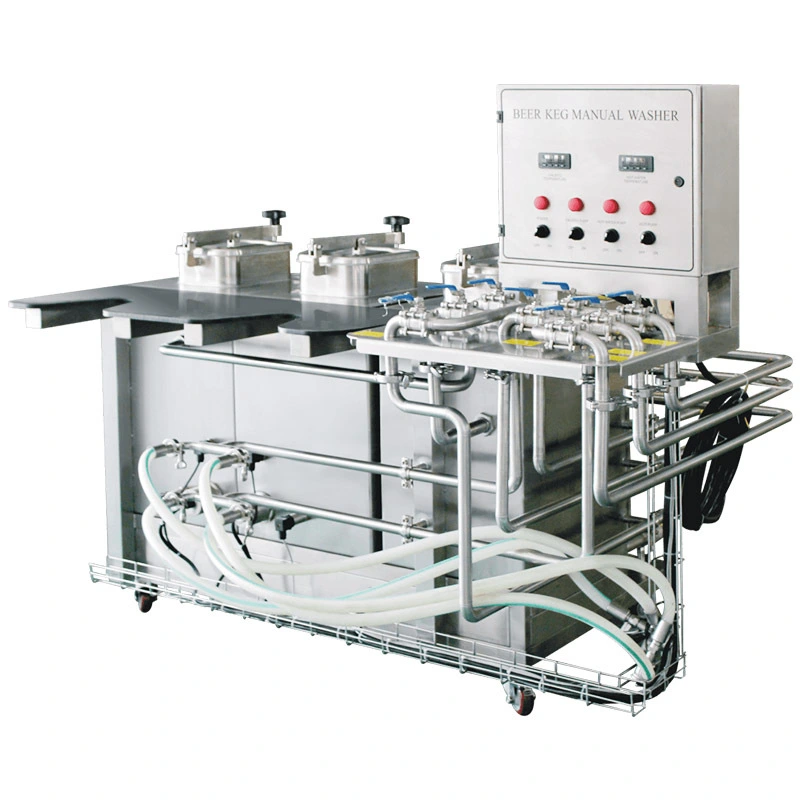

Double Heads Two Tanks Manual Washer TRCM2-22E-N-S-3
| TRCM2-22E-N-S-3 | Double heads Two Tanks Manual Washer | |||||||||
| Matching Parameter | Two pumps、two tanks without insulating layer is default choice | |||||||||
| Tank Parameter | single tank 100L without insulating layer | |||||||||
| Heater Way | Electrical heater | The table can rise or not | No | |||||||
| Tank Insulating Layer | No | Optional Add insulating layer | ||||||||
| Spear Type | S/D/A/G type (Choose one of them) | Wheels or feet | Feet | |||||||
| Power | 380V 3phase 50Hz 15KW | According To Customers Power Standard | ||||||||
| Size（L*W*H) | 1600*1450*1330mm | （Package） | （Composite Borad Box) | |||||||
| Equipment explaination | Put keg on the table, use the Micro-matic keg coupler connect with machine and keg. Pour the keg upside down on the table.Use manual valve and button to control machine to wash keg. | |||||||||
WASHING WORKING PROCESS
Impact-air blowing/drain off-water washing-air blowing/adrain off - hot caustic washing spear- hot caustic washing-air blowing to caustic tank-hot water washing spear-hot water washing- airblowing /drain off-acid washing spear-acid washing-air blowing to acid tank- hot water washing spear- hotwater washing-airblowing/drain off-steam sterilized-steam retaining-CO2 blowing/drain off-pure water (To make the keg cool)-CO2 blowing/to hot water tank-CO2 pressure preparing -cylinder return.
