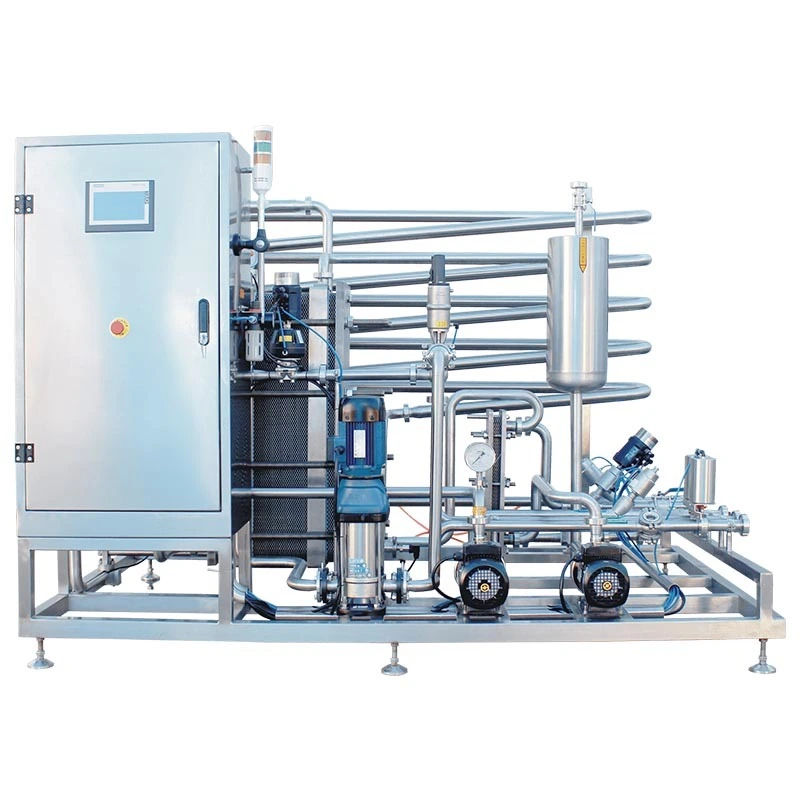

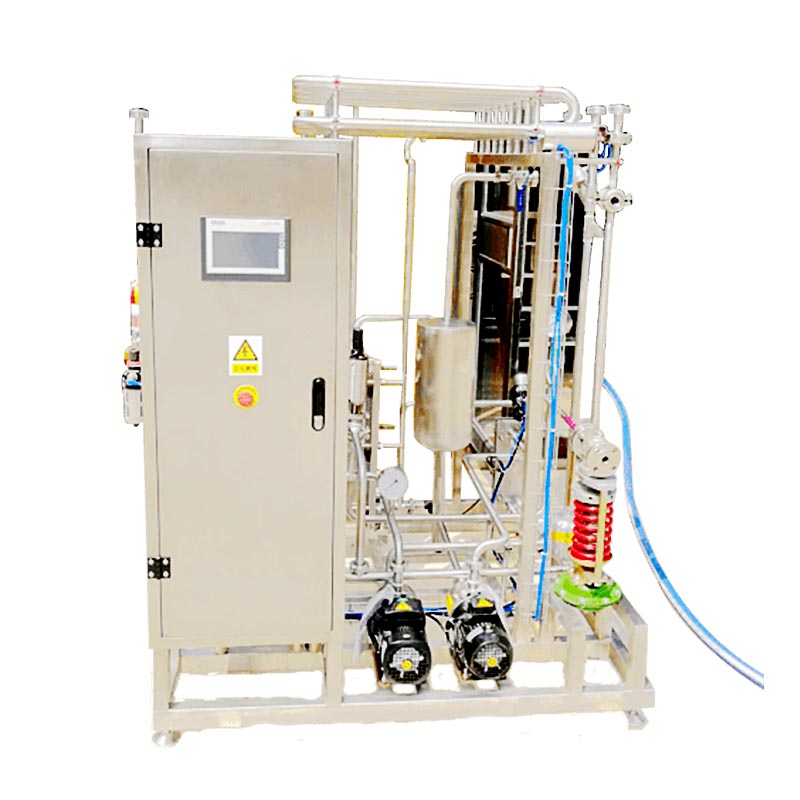

Pasteurizer Machines
5.0
Place of Origin:
Shandong, China
Guarantee:
1 Year
Min.Order:
One set
Payment Terms:
T/T, L/C, Cash, Western Union
Delivery time:
40 working days
Packaging Details:
Plywood case with iron pallet
Supply Ability:
500 Sets per Month
Port:
Qingdao
Applicable Industries:
Food & Beverage Factory, Food Shop, Food & Beverage Shops
Automatic Grade:
Automatic, Semi-automatic
Voltage:
Customized
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Type | TRSDSS-500L | TRSDSS-1000L | TRSDSS-2000L | TRSDSS-3000L | TRSDSS-4000L | TRSDSS-6000L | TRSDSS-7000L | ||
| Beer working pressure | 0.20-0.30MPa | 0.20-0.30MPa | 0.20-0.30MPa | 0.20-0.30MPa | 0.20-0.30MPa | 0.20-0.30MPa | 0.20-0.30MPa | ||
| Heater Way | Steam | Steam | Steam | Steam | Steam | Steam | Steam | ||
| Cryoge Temp | -3～-5℃ | -3～-5℃ | -3～-5℃ | -3～-5℃ | -3～-5℃ | -3～-5℃ | -3～-5℃ | ||
| Cryoge Dosage | 1m3/h | 2m3/h | 4m3/h | 6m3/h | 8m3/h | 12m3/h | 14m3/h | ||
| Cryoge Pressure | 0.10- 0.30MPa | 0.10- 0.30MPa | 0.10- 0.30MPa | 0.10- 0.30MPa | 0.10- 0.30MPa | 0.10- 0.30MPa | 0.10- 0.30MPa | ||
| City Water Pressure | 0.20- 0.30MPa | 0.20- 0.30MPa | 0.20- 0.30MPa | 0.20- 0.30MPa | 0.20- 0.30MPa | 0.20- 0.30MPa | 0.20- 0.30MPa | ||
| Steam Pressure | 0.4-1Mpa | 0.4-1Mpa | 0.4-1Mpa | 0.4-1Mpa | 0.4-1Mpa | 0.4-1Mpa | 0.4-1Mpa | ||
| Steam Dosage | 9.5KGs/H | 19KGs/H | 38KGs/H | 57KGs/H | 76KGs/H | 114KGs/H | 133KGs/H | ||
| Power: 3Phase 380V 50Hz | 1.4KW | 1.6KW | 2KW | 2.5KW | 3.2KW | 4.8KW | 5.3KW | ||
| Process | 2℃→75℃25S→2℃ | 2℃→75℃25S→2℃ | 2℃→75℃25S→2℃ | 2℃→75℃25S→2℃ | 2℃→75℃25S→2℃ | 2℃→75℃25S→2℃ | 2℃→75℃25S→2℃ | ||
| Size（L*W*H） | 1.50×1.20×1.60M | 1.40×1.40×1.90M | 1.40×2.10×1.60M | 1.40×2.30×1.60M | 1.40×2.30×1.60M | 1.60×2.60×1.60M | 1.60×2.60×1.60M | ||
| Package Size (L*W*H) | 1.65×1.35×1.85M | 1.55×1.55×2.15M | 1.55×2.25×1.85M | 1.55×2.45×1.85M | 1.55×2.45×1.85M | 1.75×2.75×1.85M | 1.75×2.75×1.85M | ||
| SPARE PARTS | PLC | SIEMENS | SPARE PARTS | Pneumatic Butterfly Valve | YUANAN | ||
| PLC MODULE | SIEMENS | Intelligenter Stellungsregler | ALPHA+ESG | ||||
| TOUCH PANEL | SIEMENS | Air operated reversing valve | YUANAN | ||||
| ELECTRIC | CHINT | Frame , Sheet metal | PUXIANG | ||||
| FLOW METER | BURKERT | Pipe fittings | YUANAN | ||||
| PT100 | BAITE | V-series plate heat exchanger | VEIX | ||||
| Contact pressure gauges | SHENYAN | Sanitary thermostat pipe | YUANAN | ||||
| Intelligenter Stellungsregler | ALPHA+ESG | Solenoid valve | AIRTAC | ||||
| Intelligenter Stellungsregler | ALPHA+GEMU GEBR | Steam relief valve | ANQUAN | ||||
