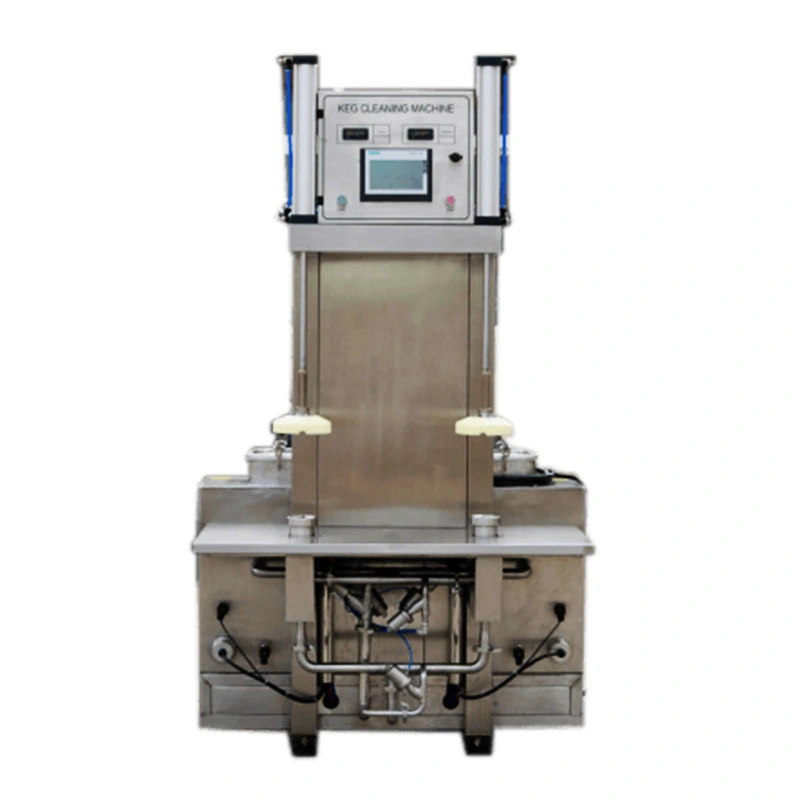

Single Head Semi-Aotumatic Washer TRCA1-22S-T-H-1
5.0
Min.Order:
One set
Payment Terms:
T/T, L/C, Cash, Western Union
Delivery time:
40 working days
Packaging Details:
Plywood case with iron pallet
Supply Ability:
500 Sets per Month
Port:
Qingdao
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| TRCA1-22S-T-H-1 | Single head semi-aotumatic Washer | |||||||||
| Matching Parameter | Two pumps、Three tanks without insulating layer is default choice | |||||||||
| Tank Parameter | each tank 100L without insulating layer | |||||||||
| Heater Way | steam coil heater in caustic and hot watertanks | The table can rise or not | No | |||||||
| Tank Insulating Layer | No | Optional Add insulating layer | ||||||||
| Spear Type | S/D/A/G type (Choose one of them) | Wheels or feet | Feet | |||||||
| Power | 380V 3phase 50Hz 2.0KW | According To Customers Power Standard | ||||||||
| Size（L*W*H） | 1.25*1.35*2.03M， Package Size: 1.40*1.50*2.25M | Package | Composite Borad Box | |||||||
| Equipment explaination | 1、It is use the Siemens PLC200 controller and Schneider ,Taiwan AirTAC solenoid valve,pump is Chinese Yuehua. 2、The cleaning process adds unique hot caustic washing and steam sterilization function. 3、The whole machine use the stainless steel AISI304. Pipeline welding uses German automatic pipe welding equipment, one-time welding double-sided forming. 4.Washing working procedure: Pressing → air blowing/drain off → rinse water washing → air blowing/drain off → hot caustic washing → air blowing(to caustic box) → rinse water washing→ air blowing/drain off → hot water 1 washing → air blowing/drain off → hot water 2 washing → air blowing/ to rinse water tank → steam sterilized → steam keep pressure sterilized → CO2 blowing/drain off →CO2 pressure preparing | |||||||||
WASHING WORKING PROCESS
Impact-air blowing/drain off-water washing-air blowing/adrain off - hot caustic washing spear- hot caustic washing-air blowing to caustic tank-hot water washing spear-hot water washing- airblowing /drain off-acid washing spear-acid washing-air blowing to acid tank- hot water washing spear- hotwater washing-airblowing/drain off-steam sterilized-steam retaining-CO2 blowing/drain off-pure water (To make the keg cool)-CO2 blowing/to hot water tank-CO2 pressure preparing -cylinder return.
